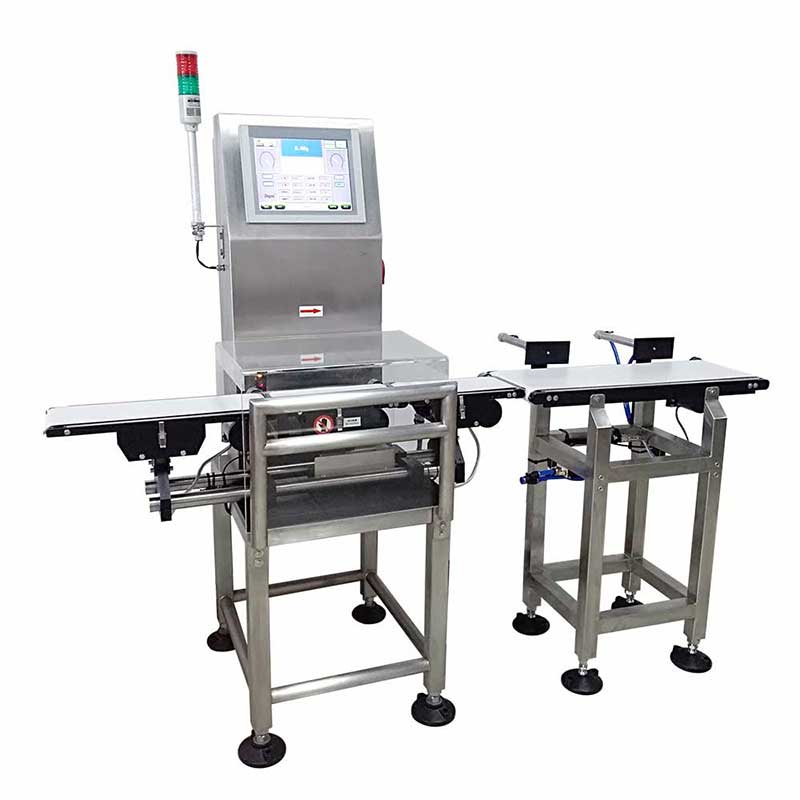

Online checkweigher(ZG-MG-1L) double pusher

Applied industries:
Pharmacy tablets, herbs, functional food, high accuracy hardware spare parts.,etc.

Product function:
Checking packed product weight and rejecting the NG(under and over weight) products after weighed.

1. High speed ,high accuracy online weight checking
2.Advanced and proper rejection system
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. Special tailor made design and high integrated program with scanning and printing system

Want to know more ?
Email us:  sales@zegoo.net  or Leave a message  Submit


Technical details:

Name Online checkweigher
Model ZG-MG-1L double pusher
Menu language English(Other languages optional)
Product quantity restored 250 kinds of product restored in menu
Max weighing 300g/600g
Increment 0.01g
Accuracy(Зσ) +-0.02~+-0.05g(depends on product)
Weighing speed 120 pcs/min(as per request)
Segments of sorting Conveyor,weigher and rejector
In feed conveyor size Length 350mm   Width 150mm
Weigher platform size Length 250mm   Width 150mm
Out feed conveyor Length 250mm    Width 150mm
Double pusher conveyor Length 600mm   Width 200mm
Height from floor to conveyor belt 750+-50mm
Rejection system Automatic double pusher rejector(other rejectors optional)
Ingress rating IP54/IP65/IP66
Frame material SUS 304(industrial grade)
Display type 10 inches touch screen
Data exchange and export USB, RS232,Ethernet port(other optional)
HS code 842320

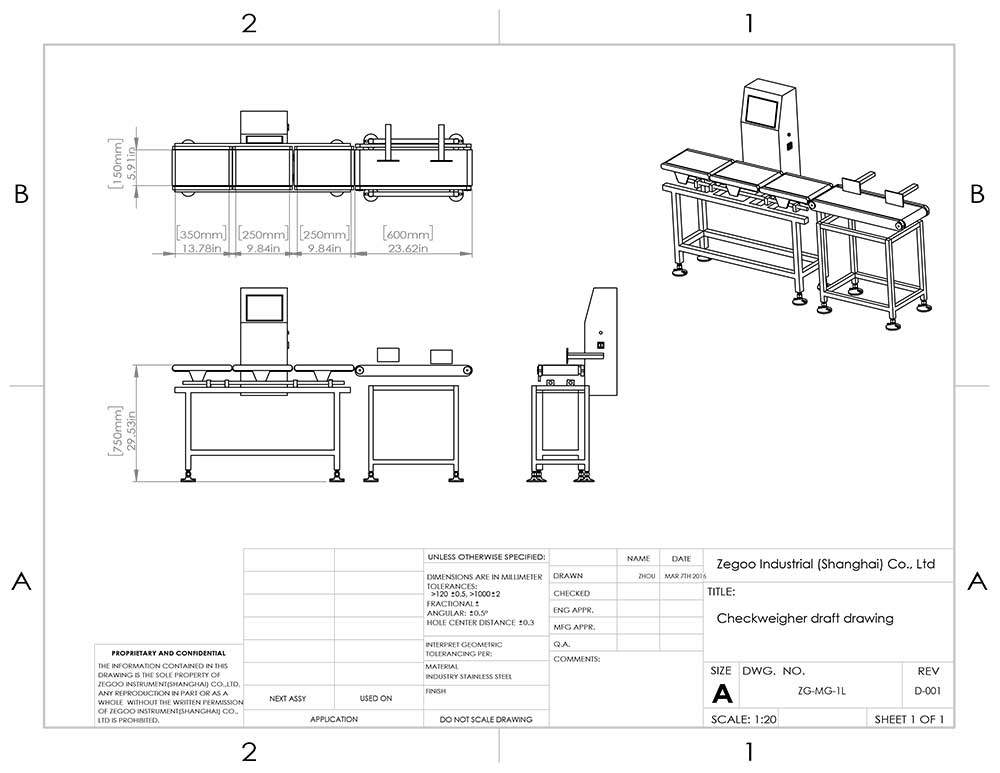

Draft drawing:
