Weight sorting machine ZG-CWG-P6200

Applied industries:
Fishery, shrimp, seafood, poultry, meat, vegetables, fruits, hydraulic products, etc.

Product function:
Sorting different weight range online conveying products to different groups in accordance with preset weight range .

1. New designed IP66 ingress rating ensure machine proper workint at bad care environment
2.Various fast sorting systems to classify products in different weight ranges
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. Standard multiple weight sorting areas ensure higher production efficiency and lower labor cost

Want to know more ?
Email us:  sales@zegoo.net  or Leave a message  Submit


Technical details:

Name Weight sorting machine
Model ZG-CWG-P6200
Menu language English(Other languages optional)
Product quantity restored 250 kinds of product restored in menu
Max weighing 1kg/3kg
Increment 0.1g
Accuracy(Зσ) +-0.5-+-1.0g(depends on product)
Weighing speed 120 pcs/min(as per request)
Segments of sorting Conveyor,weigher and 6 sorters
In feed conveyor size Length 400mm   Width 200mm
Weigher platform size Length 400mm   Width 200mm
Out feed conveyor pusher Length 2400mm   Width 200mm
Height from floor to conveyor belt 750+-50mm
Sorting ranges 6 kinds of weight sorting
Sorting system Automatic pusher sorter(other sorters optional)
Ingress rating IP65/IP66
Frame material SUS 304(industrial grade)
Display type 10 inches touch screen
Data exchange and export USB, RS232,Ethernet port(other optional)
HS code 842320

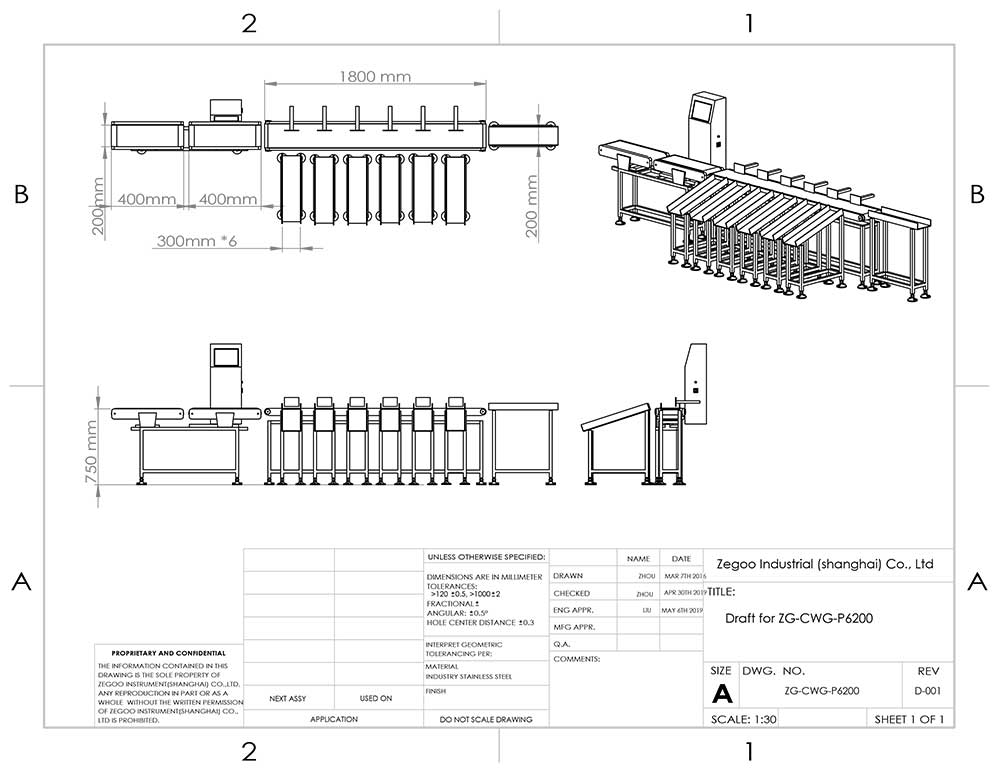

Draft drawing:
