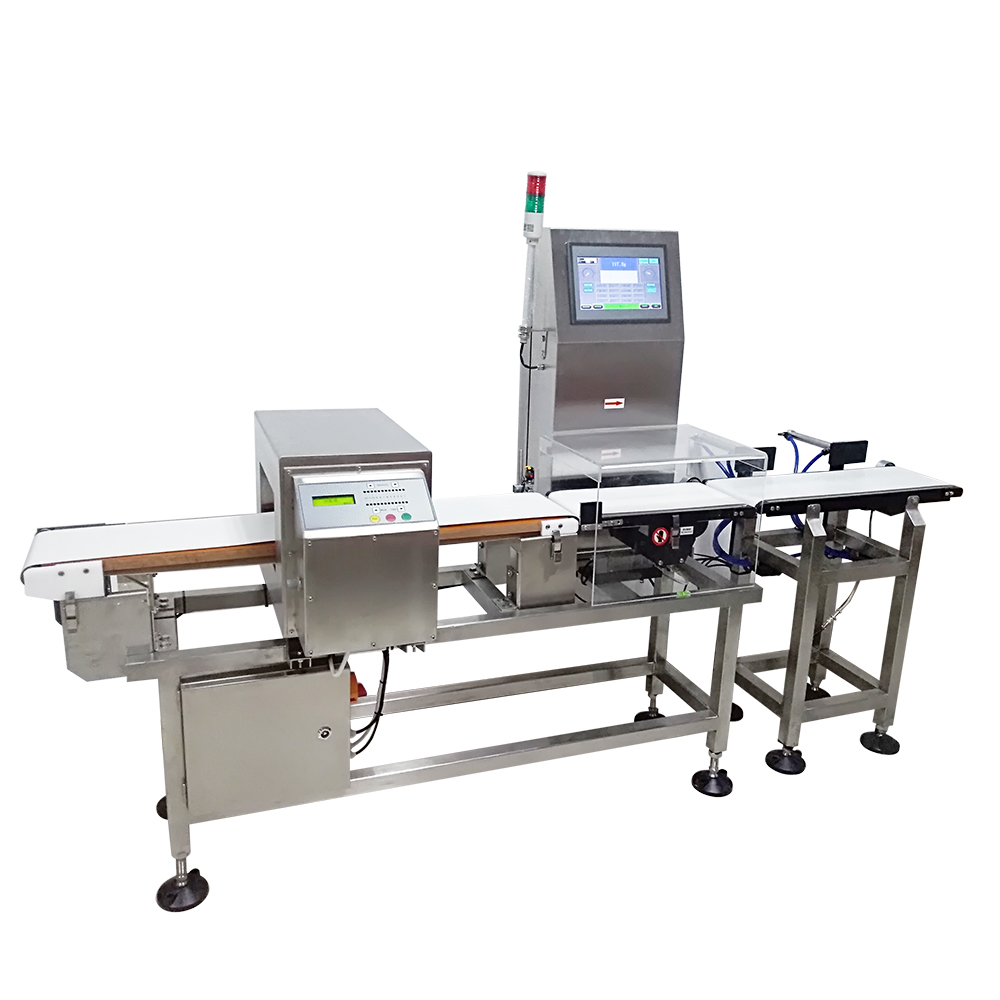

Combined aluminum foil metal detector checkweigher

Applied industries:
Food and beverage, hygiene products, personal-care products, snacks, candies,coffee, dough, functional food, pharmacy, etc

Product function:
Detecting metal contaminants and checking packed product weight and rejecting the NG(under or over weight) products after weighed.

1. Compact design ,space saving and low cost installation
2.Advanced and proper rejection system
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. High sensitivity and precision for metal detection and weight checking

Want to know more ?
Email us:  sales@zegoo.net  or Leave a message  Submit


Technical details:

Name Combined aluminum foil metal detector checkweigher
Model ZG-COM-200A | ZG-COM-300A
Menu language English(Other languages optional)
Metal detection abilities Detecting Ferrous and Magnetic Stainless steel metals in aluminum foil and metallic package
Effective detection width 200mm/ 300mm
Effective detection height 120mm(other height optional)
Product quantity restored 250 kinds of product restored in menu
Max weighing 1kg/3kg
Increment 0.1g
Accuracy(Зσ) +-0.5-+-1.0g(depends on product)
Weighing speed 120 pcs/min(as per request)
Segments of sorting Metal detector +Weigher+Double pusher rejector
In feed metal detector conveyor size Length 1200 mm   Width 200mm/300mm
Weigher platform size Length 400mm   Width 200mm/300mm
Out feed conveyor pusher Length 600mm   Width 200mm/300mm
Height from floor to conveyor belt 750+-50mm
Conveyor direction Left->Right(Operator faces to panel)
Rejection system Double automatic pusher rejector(other rejectors optional)
Ingress rating IP65/IP66
Frame material SUS 304(industrial grade)
Display type 10 inches touch screen
Data exchange and export USB, RS232,Ethernet port(other optional)
HS code 842320

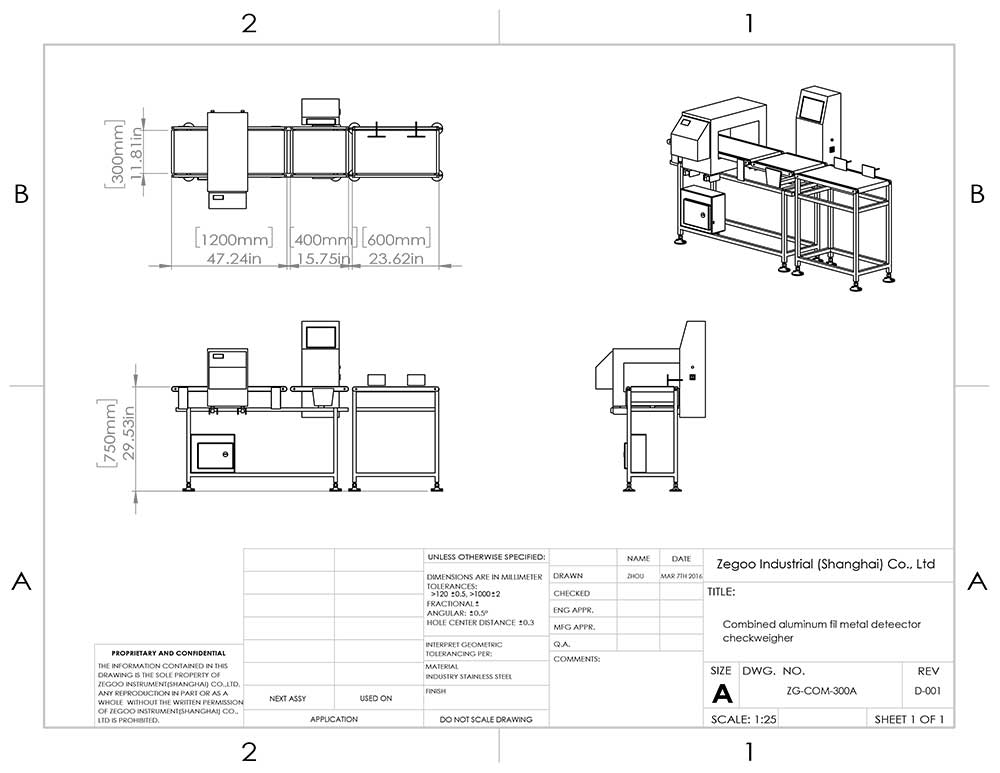

Draft drawing:
