Applied industries:
Carton or cased packed food and beverage, hygiene products, personal-care products, snacks, candies,coffee, dough, functional food, pharmacy, etc
Product function:

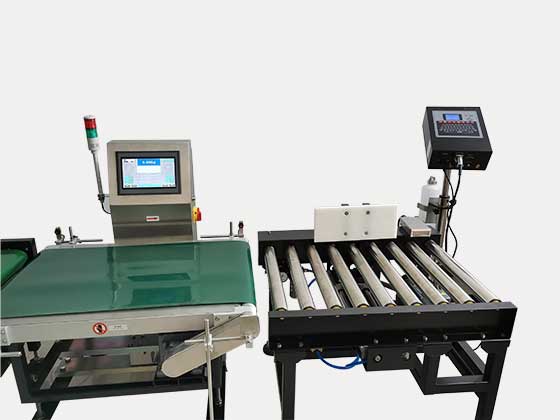

Checking packed product weight and rejecting the NG(under or over weight) products after weighed. Automatically print the data on carton box which transferred from checkweigher after box weighed.
Features:
1. High speed ,high accuracy online weight checking
2.Advanced and proper rejection system
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. Special tailor made design and high interated program with scanning and printing system
6. User friendly design date coder with one-touch start/stop function
7.Automatic nozzle clean function , convenient operation and easy maintenance
Want to know more ?
Email us: sales@zegoo.net or Leave a message Submit
Technical details:
|
Name |
Checkweigher ink printer combined |
|
Model |
ZG-CWIP-500 |
|
Menu language |
English(Other languages optional) |
|
Product quantity restored |
250 kinds of product restored in menu |
|
Max weighing |
30 kg / 50kg |
|
Increment |
5.0g |
|
Accuracy(Зσ) |
+-5.0~+-10.0g(depends on product) |
|
Weighing speed |
65 pcs/min(as per request) |
|
Segments of sorting |
Conveyor,weigher and rejector |
|
In feed conveyor size |
Length 800mm Width 500mm |
|
Weigher platform size |
Length 800mm Width 500mm |
|
Out feed roller conveyor pusher |
Positive roller 500*800mm |
|
Height from floor to conveyor belt |
650+-50mm |
|
Rejection system |
Automatic roller pusher rejector(other rejectors optional) |
|
Ingress rating |
IP54/IP65/IP66 |
|
Frame material |
Carbon steel(SUS304 optional) |
|
Display type |
10 inches touch screen |
|
Data exchange and export |
USB, RS232,Ethernet port(other optional) |
|
Printing Lines |
2 Lines English Letters and Numbers / 1 Line Chinese Characters |
|
Printing Height |
Lattice 7 Nozzle：10-20MM / Lattice 16 Nozzle：20-50MM |
|
Printing Speed |
0.2m/min ----91m/min |
|
Printing Lattice |
5*5 4*7 5*7 5*5 4*7 5*7 7*9 6*12 8*16 8*7 9*16 12*16 |
|
Printing Fuction |
1. ASCII Visible Characters, and More Than 6000 GB of Chinese Characters (Pinyin Input Method) |
|
Printing Distance |
5-30MM |
|
Information Storage |
200 Information Files, Each up to 5120 Points |
|
Communication Interface |
RS232（optional） |
|
Power Supply |
220AC±10%，50hz |
|
Environmental Conditions |
Temperature 0-45 ° Air Humidity 10-90% (not Cold) |
|
Ink Specifications |
Ketone Based Ink, Ink, Water-Based, Alcohol-Based Ink, Request a Special Ink |
