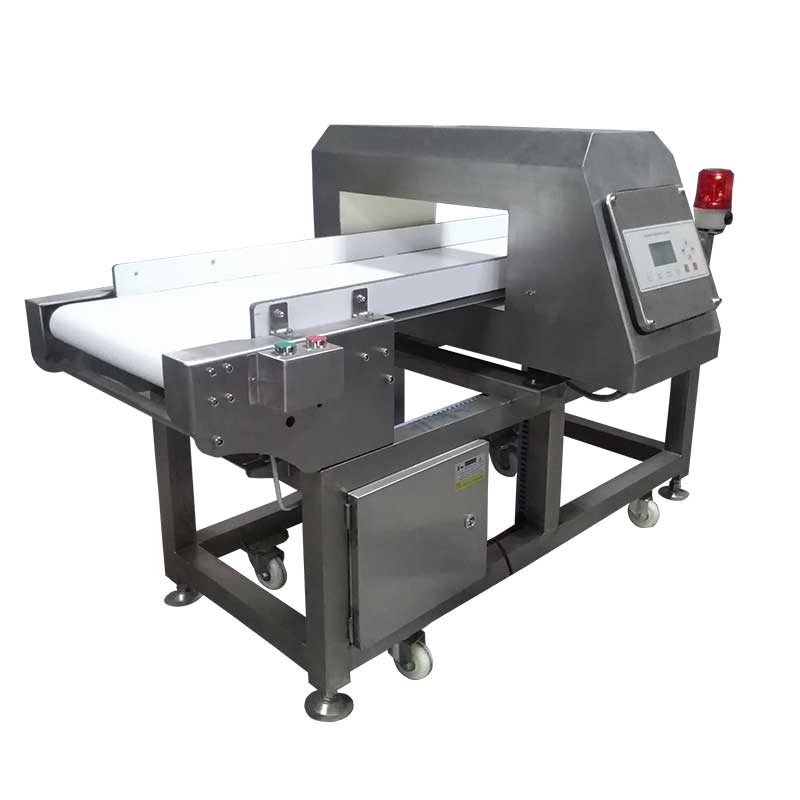

Conveyor belt metal detector (ZG-MD-4015)

Applied industries:
Bakery, biscuits, coffee, nuts, flours, vegetables, fruits, poultry, meat, salty food, snack food, grains, pharmacy ,cosmetics, industrial materials, toys,etc.

Product function:
Detecting all kinds of metal contaminants include Ferrous, Aluminum,Copper, Stainless steel 304,316,etc.

Features:
1. High modularized and integrated design
2.Advanced intelligent digital technology
3. Easy operation and calibration
4. Compact frame and endurable working


Want to know more ?
Email us:  sales@zegoo.net  or Leave a message  Submit






Technical details:

Name Conveyor belt metal detector
Model ZG-MD-4015
Detection tunnel size Width: 400mm  height: 150mm
Tunnel type Horizontal
Detection ability Ferrous, Non-Ferrous(Aluminum, Copper),Stainless steels 304, 316 and other metals
Speed of conveyor belt 20m/min ( Other speed optional, adjustable speed optional)
Metal detector total length 1600mm (Other optional)
Operation language English (Other languages optional)
Product memories 100 kinds of products restored
Conveyor belt White color PU /PVC(Other colors optional)
Height from floor to conveyor belt 700+-50 mm  (Other optional)
Rejection system Buzzer alarms and belt stops (Other automatic rejectors optional)
Power Supply 220V 50Hz(Other optional)
Frame material SUS304 (industrial grade)
Ingress rating IP54/IP65/IP66
HS code 9031809090

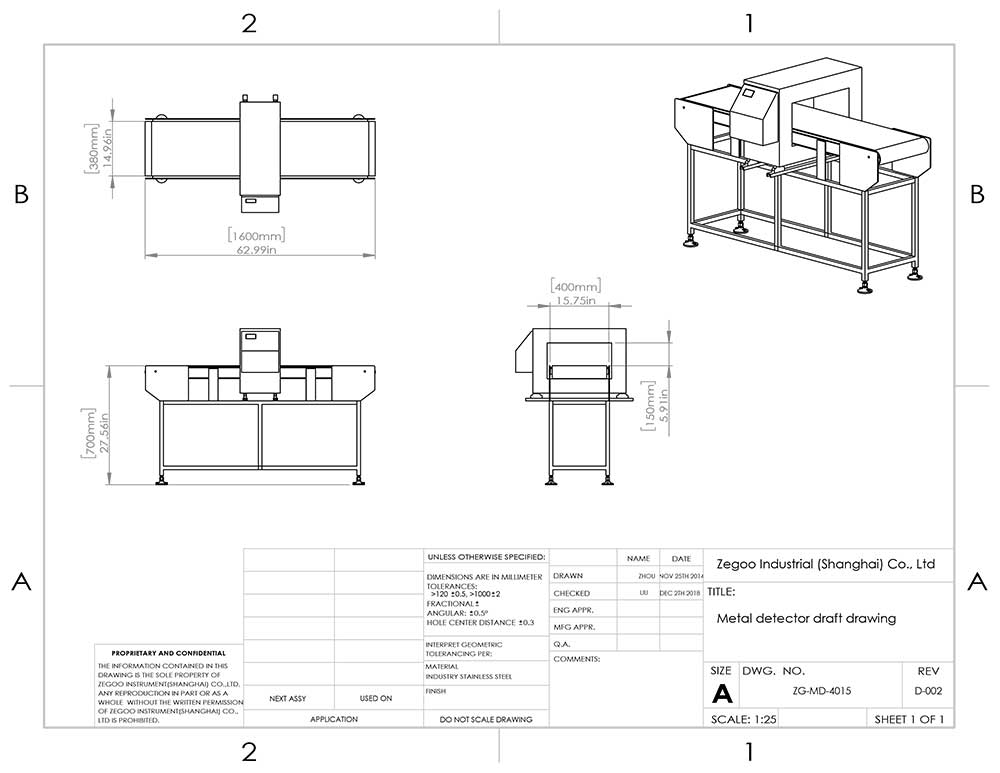

Draft drawing:
