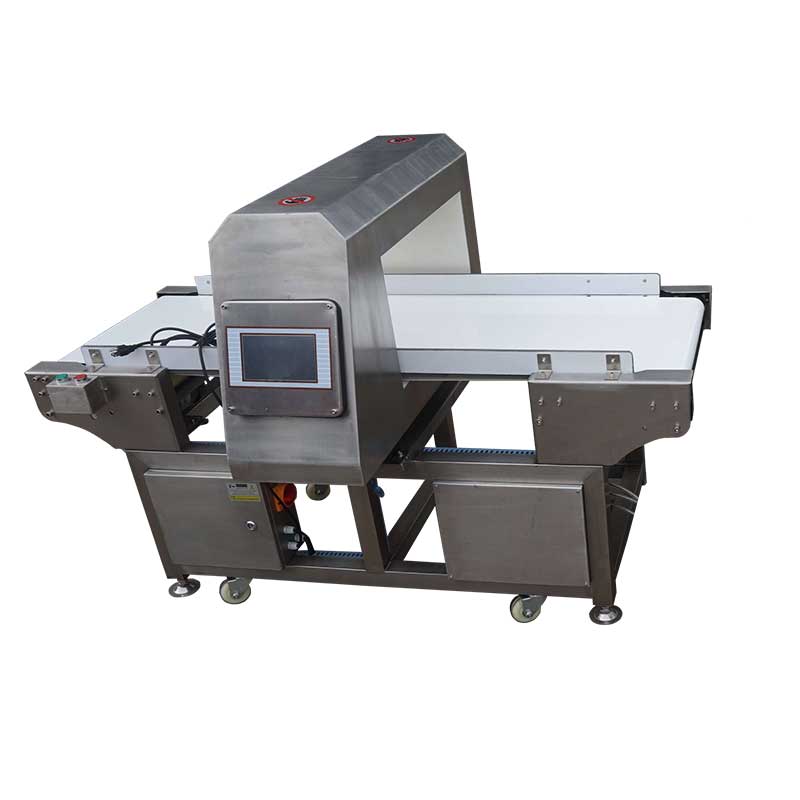

Conveyor belt metal detector (ZG-MD-5025R)

Applied industries:
Bakery, biscuits, coffee, nuts, flours, vegetables, fruits, poultry, meat, salty food, snack food, grains, pharmacy ,cosmetics, industrial materials, toys,etc.

Product function:
Detecting all kinds of metal contaminants include Ferrous, Aluminum,Copper, Stainless steel 304,316,etc.

Features:
1. High modularized and integrated design
2.Advanced intelligent digital technology
3. Easy operation and calibration
4. Compact frame and endurable working


Want to know more ?
Email us:  sales@zegoo.net  or Leave a message  Submit






Technical details:

Name Conveyor belt metal detector
Model ZG-MD-5025R
Detection tunnel size Width: 500mm  height: 250mm
Tunnel type Horizontal
Detection ability Ferrous, Non-Ferrous(Aluminum, Copper),Stainless steels 304, 316 and other metals
Speed of conveyor belt 20m/min ( Other speed optional, adjustable speed optional)
Metal detector total length 1600mm/1700mm/1800mm (Other optional)
Operation language English (Other languages optional)
Product memories 100 kinds of products restored
Conveyor belt White color PU /PVC(Other colors optional)
Height from floor to conveyor belt 700+-50 mm  (Other optional)
Rejection system Automatic pusher rejector(Other automatic rejectors optional)
Power Supply 220V 50Hz(Other optional)
Frame material SUS304 (industrial grade)
Ingress rating IP54/IP65/IP66
HS code 9031809090

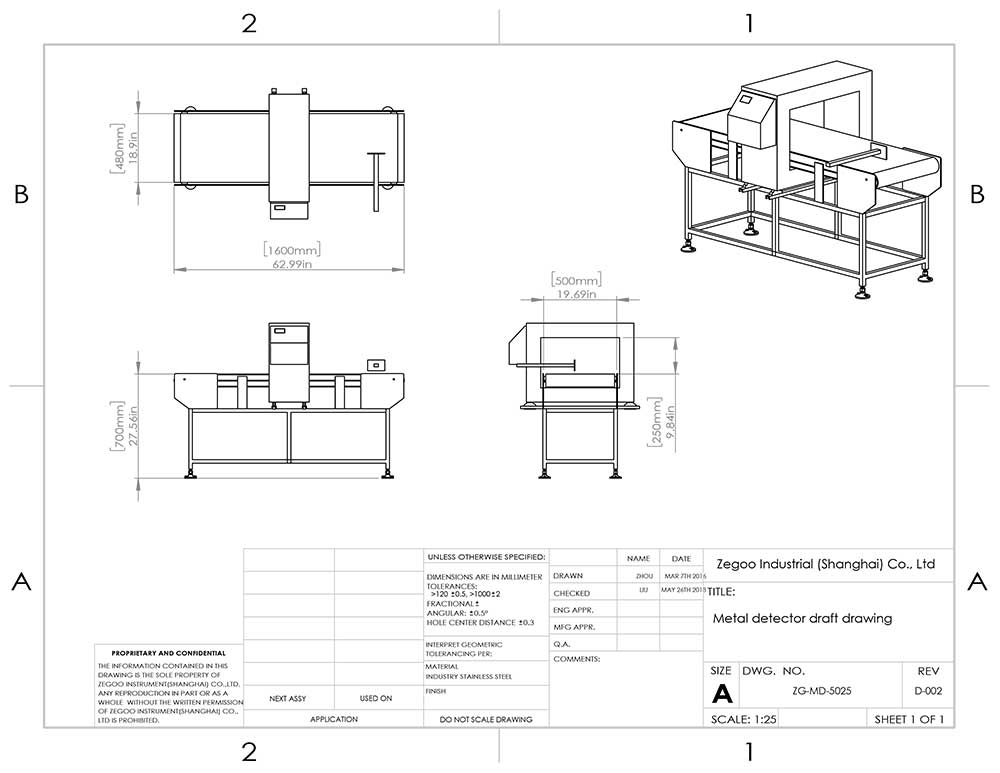

Draft drawing:
