Applied industries:
Bakery, biscuits, coffee, nuts, flours, vegetables, fruits, poultry, meat, salty food, snack food, grains, pharmacy ,cosmetics, industrial materials, toys,etc.
Product function:
Detecting all kinds of Ferrous and magnetic stainless steel metal contaminants in aluminum foil or metallic package product
Features:
1. Special for aluminum foil or metallic package product
2. Strong anti magnetic induction interference function
3. First class micro processor controller
4. Accurate detection and good robustness
Want to know more ?
Email us: sales@zegoo.net or Leave a message Submit
Technical details:
| Name | Aluminum metal detector |
| Model | ZG-AD-4012 |
| Detection tunnel size | Width: 400mm height: 120mm |
| Tunnel type | Horizontal |
| Detection ability | Ferrous, Magnetic stainless steel |
| Speed of conveyor belt | 20m/min ( Other speed optional, adjustable speed optional) |
| Metal detector total length | 1600mm (Other optional) |
| Operation language | English |
| Conveyor belt | White color PU /PVC(Other colors optional) |
| Height from floor to conveyor belt | 700+-50 mm (Other optional) |
| Rejection system | Alarm and belt stop(Other automatic rejectors optional) |
| Power Supply | 220V 50Hz(Other optional) |
| Frame material | SUS304 (industrial grade) |
| Ingress rating | IP54/IP65 |
| HS code | 9031809090 |

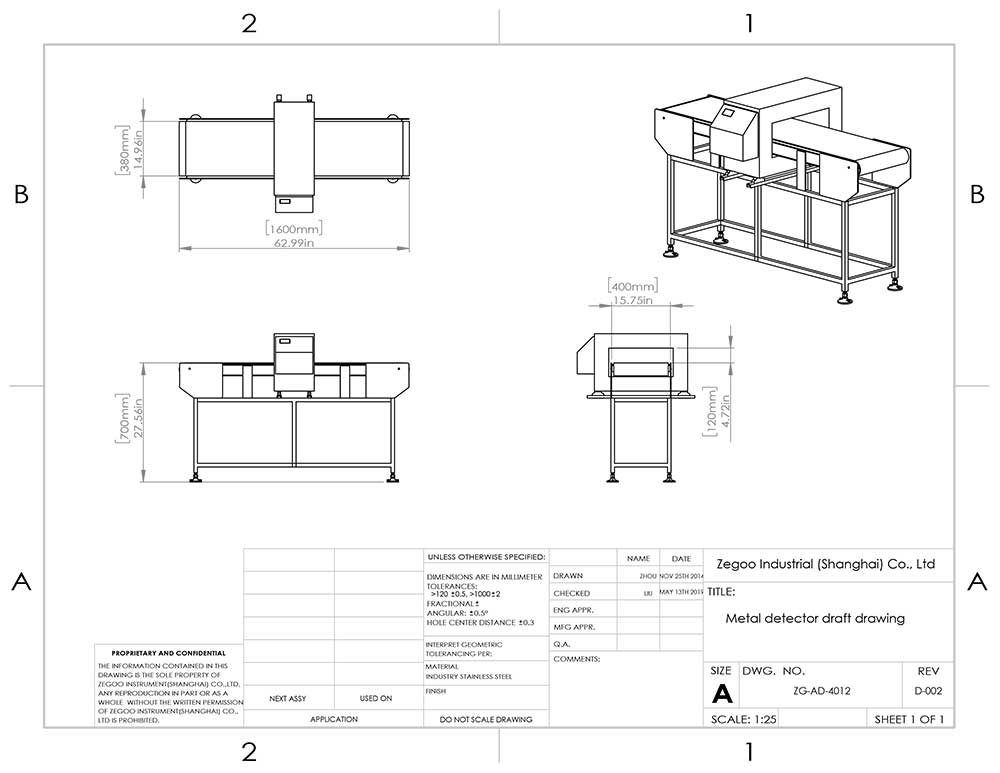

Draft drawing:
