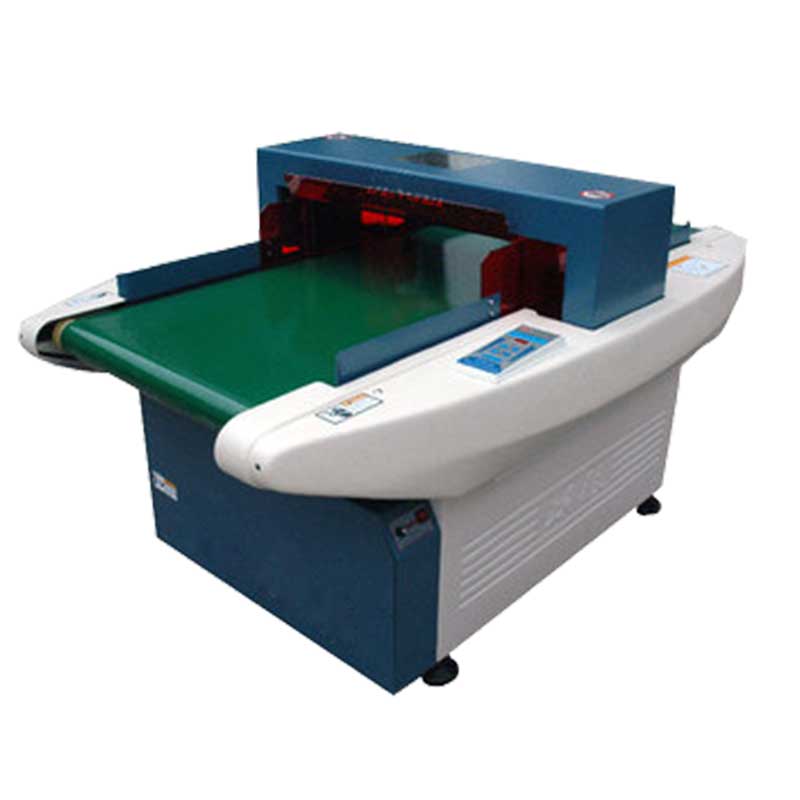

Needle detector ZG-ND-60

Applied industries:
Garments, Fabrics, Apparels, Textiles, Cloths, Shoes, Suits, Trousers, Socks,etc.

Product function:
Identifying whether there are any undesirable metallic substances and broken needles left-over or embedded in the garment and accessories in manufacturing and sewing process.
Features:
1. 32 bit digital computer chipes with latest workmanship and technology
2.Auto shutdown energy saving mode after no detection for more than 10 minutes
3. 8 points positioning technology enabling to find out specific location of borken needles
4. Counting function for a better production management
5. Excellent anti-interference design with good detection stability
6. Printing function for production management


Want to know more ?
Email us:  sales@zegoo.net  or Leave a message  Submit






Technical details:

Name Needle detector
Model ZG-ND-60
Detection tunnel size Width: 600mm  height: 100mm/120mm/150mm(Other optional)
Tunnel type Horizontal
Detection ability Ferrous, magnetic metals and broken needles
Speed of conveyor belt 20m/min ( Other speed optional, adjustable speed optional)
Metal detector total length 1650mm (Other optional)
Operation language English (Other languages optional)
Conveyor belt Green color PVC
Height from floor to conveyor belt 700+-50 mm  (Other optional)
Rejection system Buzzer alarms and belt stops / Buzzer alarms and return back
Power Supply 220V 50Hz(Other optional)
Frame material Carbon steel
Ingress rating IP54
HS code 9031809090
