Applied industries:
Garments, Fabrics, Apparels, Textiles, Cloths, Shoes, Suits, Trousers, Socks,etc.
Product function:
Identifying whether there are any undesirable metallic substances and broken needles left-over or embedded in the garment and accessories in manufacturing and sewing process.
Features:
1. 32 bit digital computer chipes with latest workmanship and technology
2. Aluminum alloy framework, long endurance
3. Adjustable sensitivity level 1~10
5. Excellent anti-interference design with good detection stability
6. Automatic buzzer alarms and lamp twinkles
Want to know more ?
Email us: sales@zegoo.net or Leave a message Submit
Technical details:

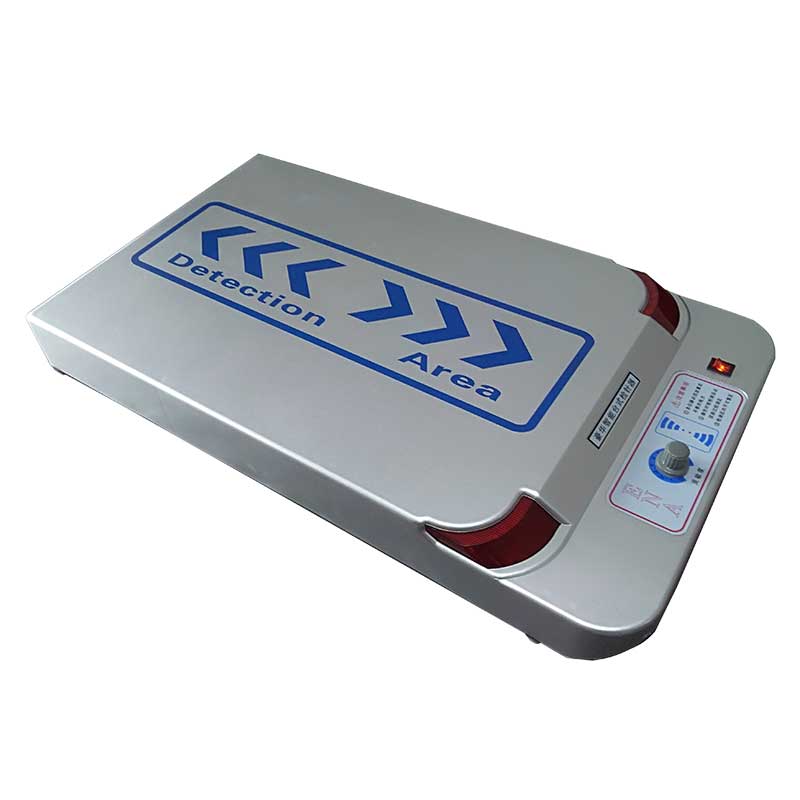

| Name | Platform type needle detector |
| Model | ZG-PND |
| Detection size | Length 500mm Width 200mm |
| Tunnel type | Horizontal |
| Machine dimension | 660*365*70mm(L*W*H) |
| Net weight | 10 kg |
| Detection type | Magnetic induction, Analog technology |
| Sensitivity | Fe Φ 0.8mm |
| Sensitivity adjustment | Level 1 to level 10 adjustable |
| Alarm system | Buzzer alarms and lamp twinkles |
| Frame material | Aluminum alloy |
| Power Supply | 220V 50Hz(Other optional) |
| Power | 30 W |
| Ingress rating | IP65 |
| HS code | 9031809090 |
