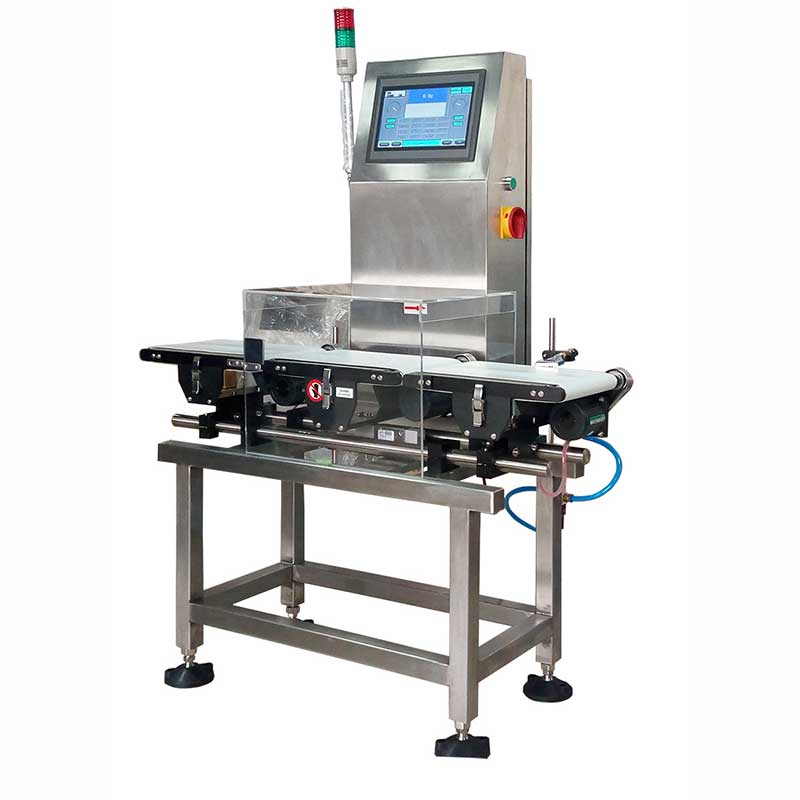

Online checkweigher(ZG-CW-2) air jet

Applied industries:
Food and beverage, hygiene products, personal-care products, snacks, candies,coffee, dough, functional food, pharmacy, etc

Product function:
Checking packed product weight and rejecting the NG(under or over weight) products after weighed.

Features:
1. High speed ,high accuracy online weight checking
2.Advanced and proper rejection system
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. Special tailor made design and high integrated program with scanning and printing system


Want to know more ?
Email us:  sales@zegoo.net  or Leave a message  Submit





Technical details:

Name Online checkweigher
Model ZG-CW-2  air jet
Menu language English(Other languages optional)
Product quantity restored 250 kinds of product restored in menu
Max weighing 1kg/3kg
Increment 0.1g
Accuracy(Зσ) +-0.5-+-1.0g(depends on product)
Weighing speed 120 pcs/min(as per request)
Segments of sorting Conveyor,weigher and rejector
In feed conveyor size Length 300mm   Width 200mm
Weigher platform size Length 300mm   Width 200mm
Out feed conveyor pusher Length 300mm   Width 200mm
Height from floor to conveyor belt 750+-50mm
Rejection system Automatic air jet rejector(other rejectors optional)
Ingress rating IP54/IP65/IP66
Frame material SUS 304(industrial grade)
Display type 10 inches touch screen
Data exchange and export USB, RS232,Ethernet port(other optional)
HS code 842320

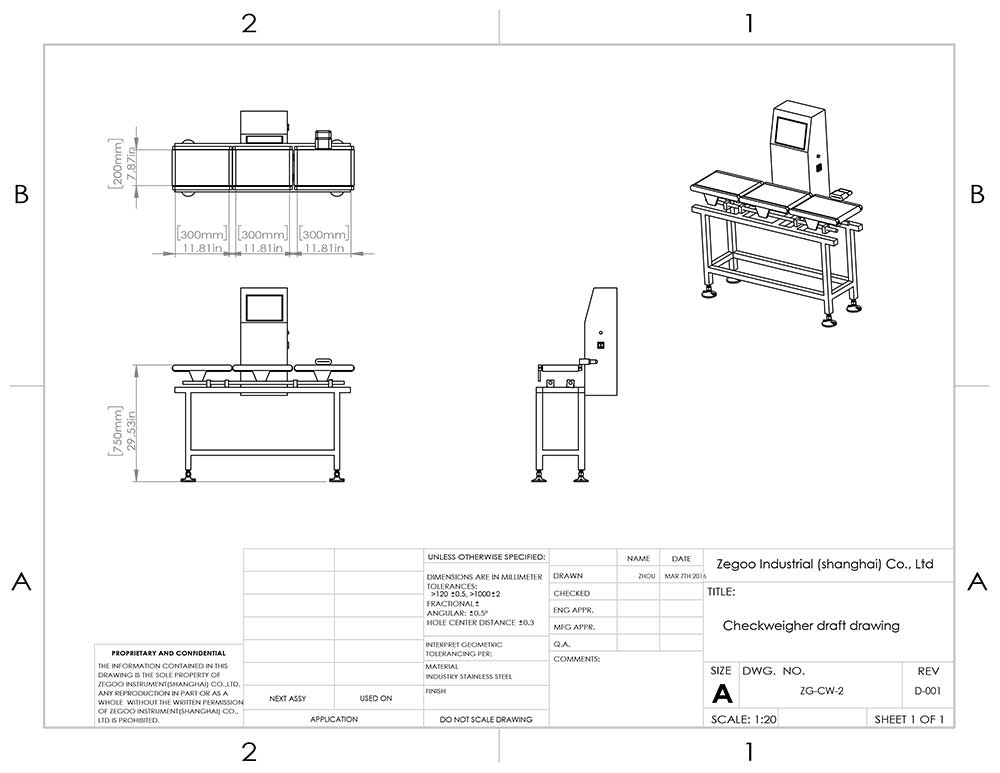

Draft drawing:
