Applied industries:
Fishery, shrimp, seafood, poultry, meat, vegetables, fruits, hydraulic products, etc.
Product function:
Sorting different weight range online conveying products to different groups in accordance with preset weight range .
Features:
1. New designed IP66 ingress rating ensure machine proper workint at bad care environment
2.Various fast sorting systems to classify products in different weight ranges
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. Standard multiple weight sorting areas ensure higher production efficiency and lower labor cost
Want to know more ?
Email us: sales@zegoo.net or Leave a message Submit
Technical details:
| Name | Weight sorting machine |
| Model | ZG-CWG-P6400 |
| Menu language | English(Other languages optional) |
| Product quantity restored | 250 kinds of product restored in menu |
| Max weighing | 15 kg |
| Increment | 1.0g |
| Accuracy(Зσ) | +-1.0-+-5.0g(depends on product) |
| Weighing speed | 80 pcs/min(as per request) |
| Segments of sorting | Conveyor,weigher and 6 sorters |
| In feed conveyor size | Length 600mm Width 400mm |
| Weigher platform size | Length 600mm Width 400mm |
| Out feed conveyor pusher | Length 3000mm Width 400mm |
| Height from floor to conveyor belt | 650+-50mm |
| Sorting ranges | 6 kinds of weight sorting |
| Sorting system | Automatic pusher sorter(other sorters optional) |
| Ingress rating | IP65/IP66 |
| Frame material | SUS 304(industrial grade) |
| Display type | 10 inches touch screen |
| Data exchange and export | USB, RS232,Ethernet port(other optional) |
| HS code | 842320 |

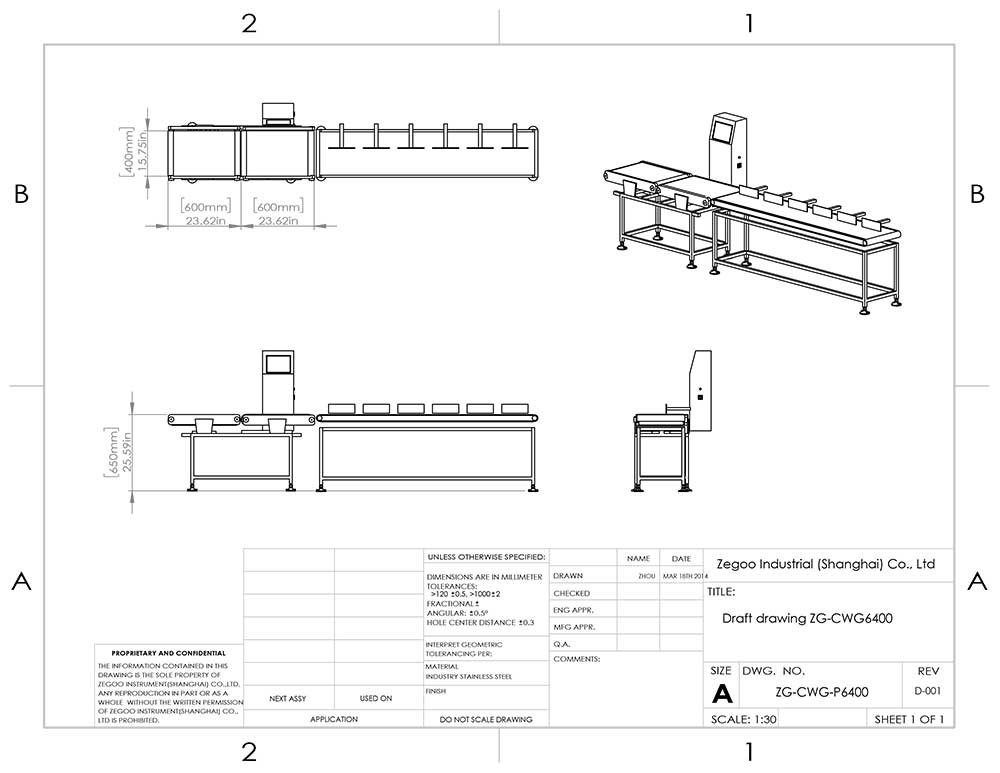

Draft drawing:
